Bipolar electrodialysis（BPED）

Name: China Bipolar electrodialysis（BPED） Manufacturers, Suppliers and Factory - Custom Service
Brand: ENCO
SKU: 239078651

Bipolar electroosmosis is an innovative fluid-driven technology that promotes the flow of liquids in porous media by applying a voltage between electrodes to generate an electric field. This technology is widely used in battery recycling, biomedical engineering, enhanced oil recovery and other fields, and is favored for its high efficiency, energy saving, controllability and other advantages.

Send Inquiry

Description

Technical Parameters

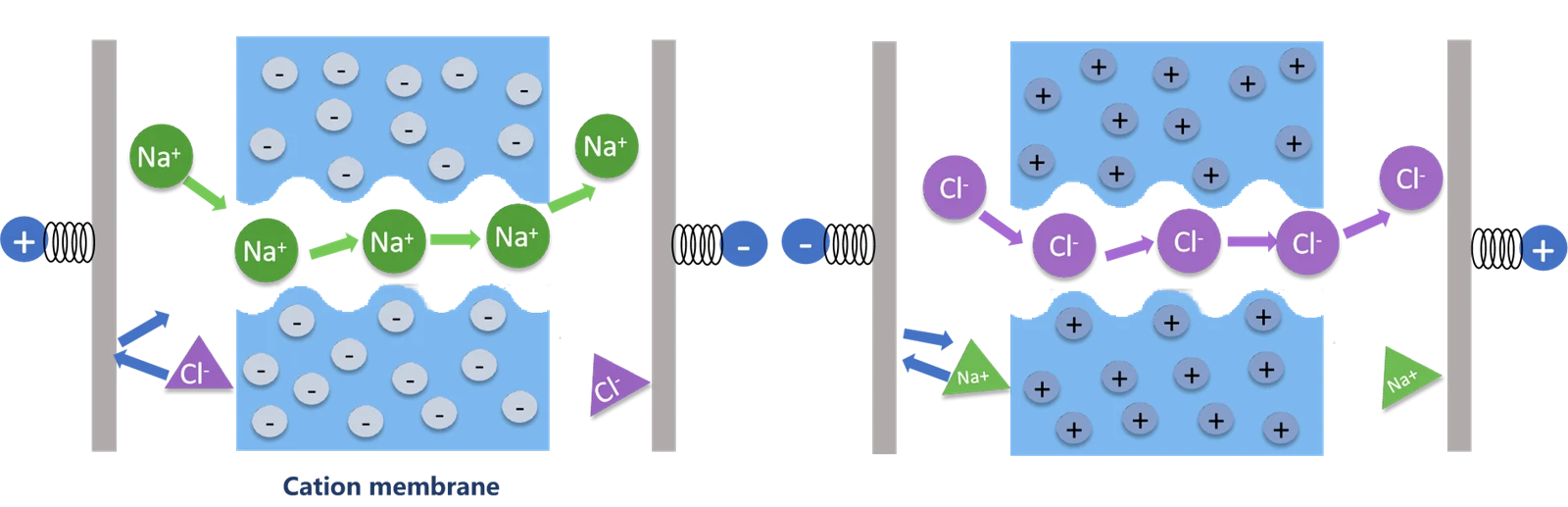

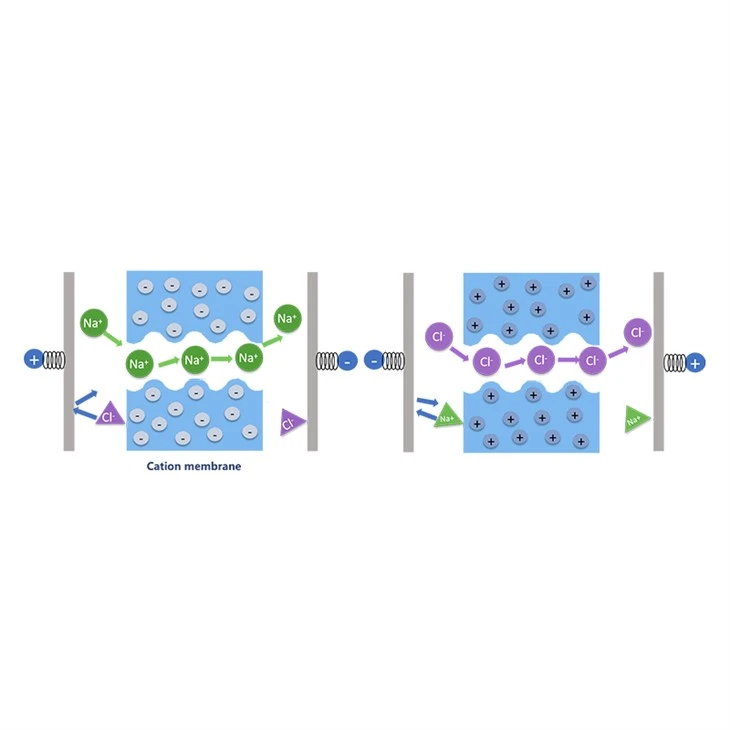

Structure of Ion Exchange Membrane

Ion exchange membrane has a unique structure for selective permeation of anions and cations.

Structure of Bipolar Membrane

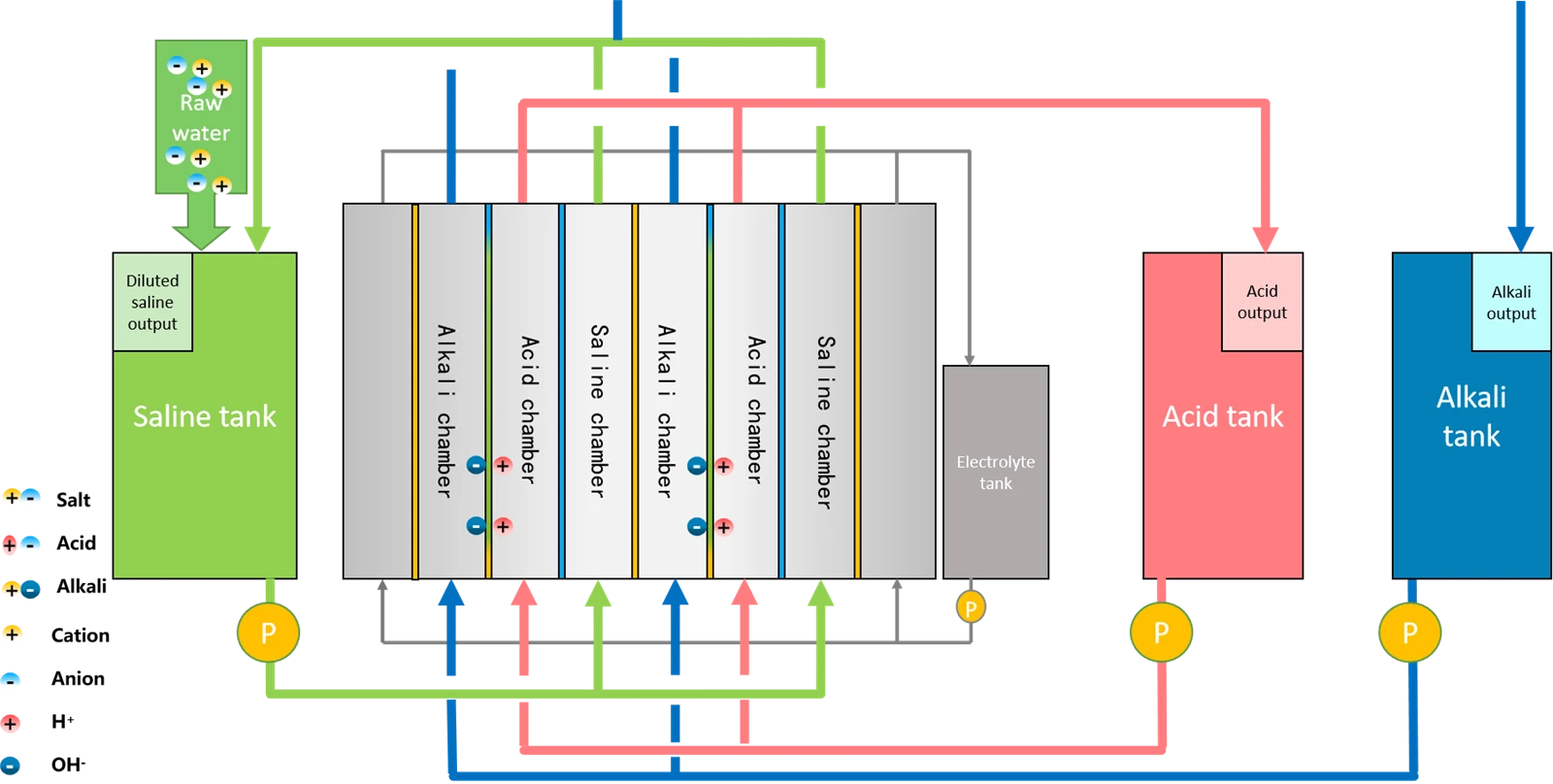

Working Principle

- Seperation of water into H+ and OH- : H2O→H++OH-

- Hydrolysis voltage: 1.0~1.3V(theoretical value: 0.83V)

- High water decomposition efficiency>0.98

- Excellent durability

1.A bipolar membrane refers to a membrane having a combination structure of ①an anion exchange layer, ②a cation exchange layer, and ③an intermediate catalytic layer.

2.After a voltage is applied across the membrane, water in the membrane decomposes into acid (H+) and alkali (OH-).
